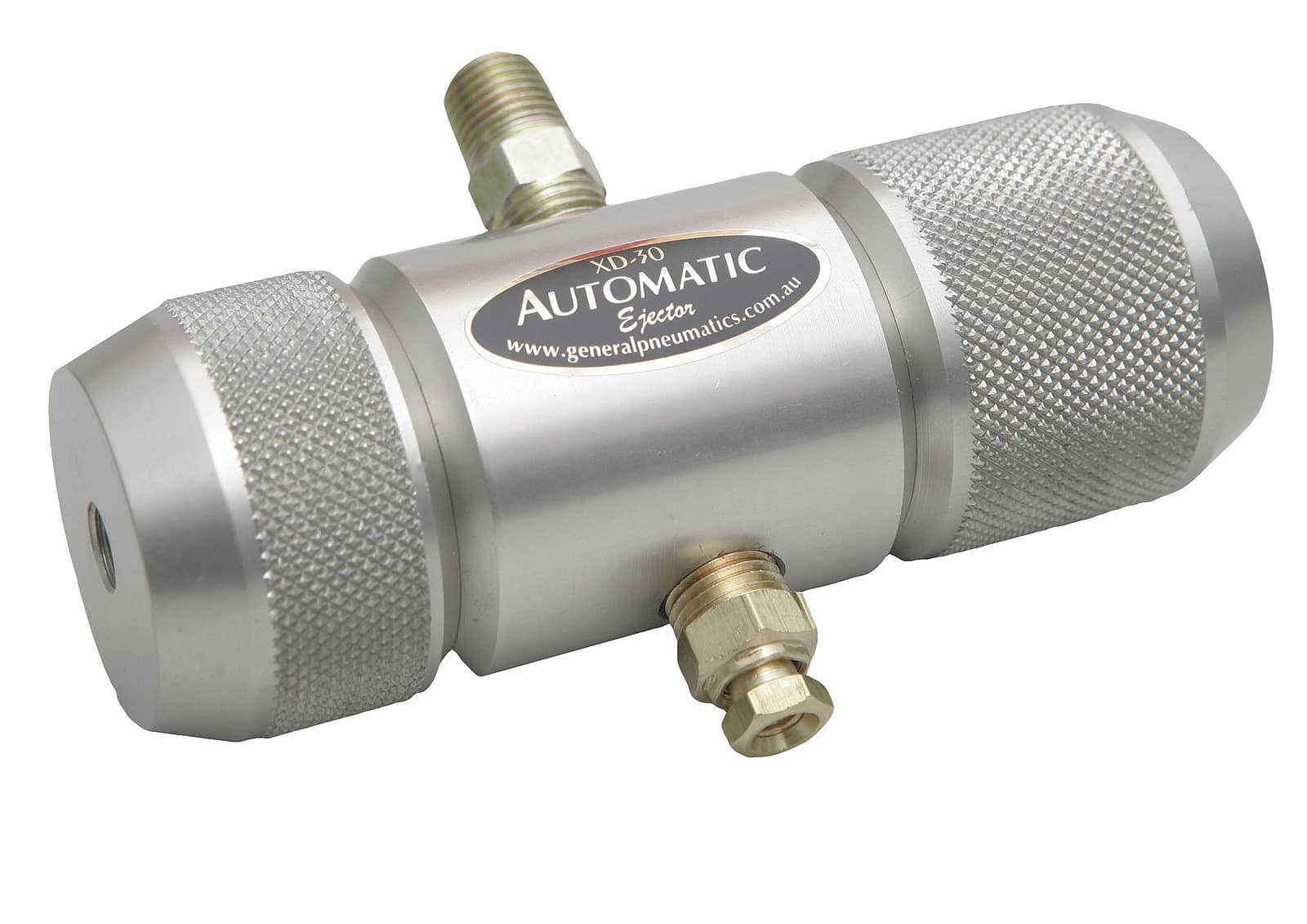

XD-30 DumpMaster Automatic Drain Valve

Reduce Liquid Contaminants in your Truck/Trailer Air Tank by using #XD-30 Air Operated Drain Valve Connected to the Unloader Line on the Truck Compressor. Outer Body is made from Air Craft Quality Aluminium. Recommended Service Period Twice Yearly for Transport Trucks and Recommended Service for Waste Compactor Trucks Every Three Months. An integral part of your Air Brake System!


XD-30 Automatic DumpMaster Drain Valve

  • Air Operated Moisture Ejector.
  • Drains Truck Air Tank Automatically.
  • Suited to Transport Drivers, Truck Hire and Truck Rental Vehicles.
  • Connect to #EXT-50-12V to Drain Multiple Tanks Simultaneously on your Truck/Trailer.
  • Factory use: Connect to #EDV-500 (240 Volt Electronic Drain Valve) to Drain Multiple Drop Lines Simultaneously.
  • Use Service Kit #XD-102, twice yearly or every 120,000klms or every three months for waste compactors.
  • 1/4″ NPT Hex Nipple connection to your wet tank.
  • 1/4″ Tube x 1/8″ NPT Fitting to connect tube to XD-30 end cap
  • Use 1/4″ Tube to connect to Governor Valve Unloader Line

QF 50GP-XD-102 Service Procedure
