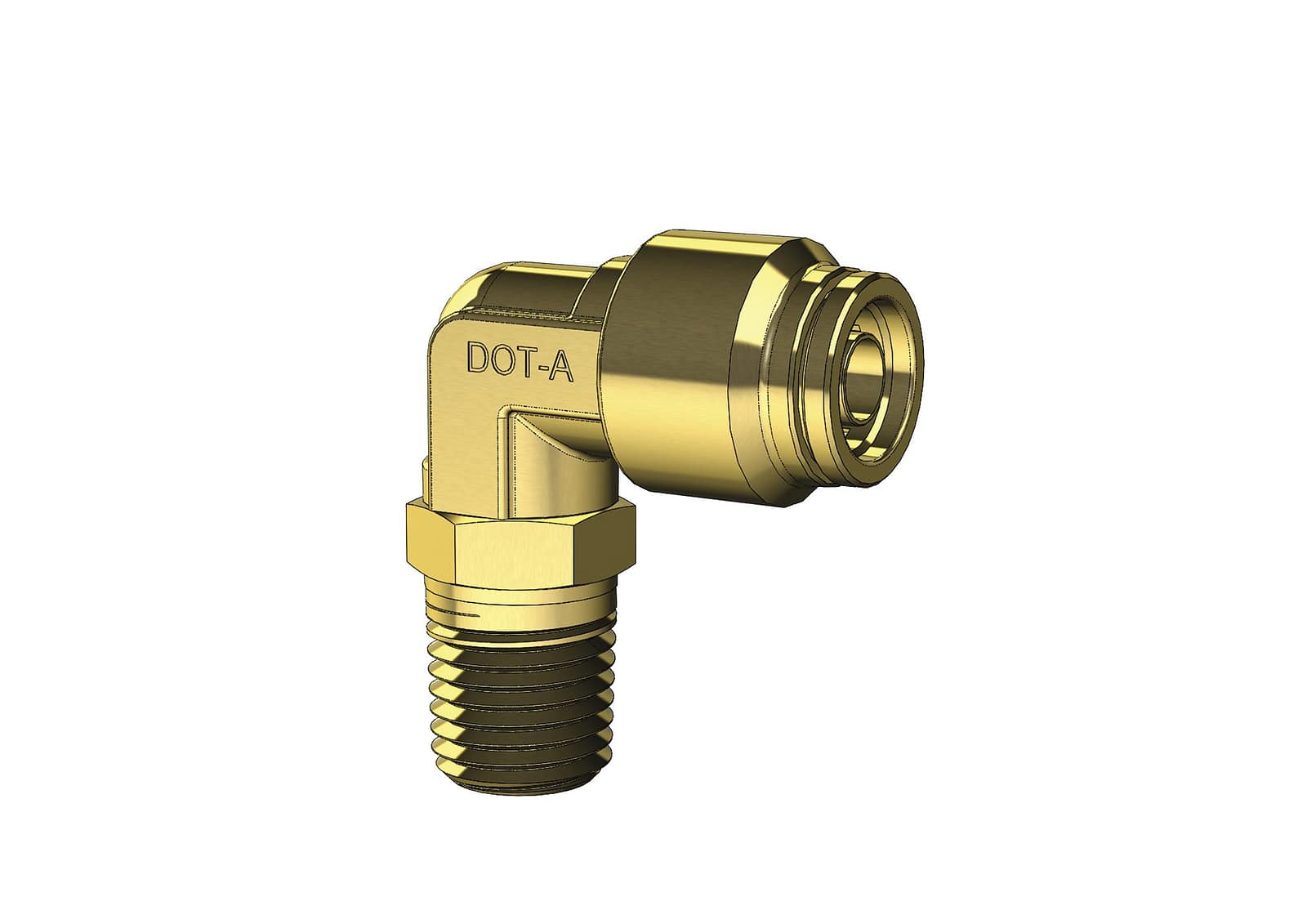

90 Degree Swivel Male Elbow Imperial

Part Number: DQ69DOTS**

DOT Push To Connect Air Brake System Fitting. 90 Degree Swivel Male Elbow, Imperial Tube to a NPTF Male Thread.
Re-Usable DOT Air Brake Fitting, Increased Efficiency when compared to Compression Fittings.
Depress the Collet to Release the Tube.
Suitable for Compact Areas, Reliable Air Brake System DOT Fitting.

Nylon Tube Sizes:

5/32", 3/16", 1/4″, 3/8″, 1/2″, 5/8″

PartTubeNPTF ThreadX-Ref
DQ69DOTS5/32025/321/81869X2.5X2S
DQ69DOTS03023/161/81869X3X2S
DQ69DOTS03043/161/41869X3X4S
DQ69DOTS04021/41/81869X4X2S
DQ69DOTS04041/41/41869X4X4S
DQ69DOTS04061/43/81869X4X6S
DQ69DOTS04081/41/21869X4X8S
DQ69DOTS06023/81/81869X6X2S
DQ69DOTS06043/81/41869X6X4S
DQ69DOTS06063/83/81869X6X6S
DQ69DOTS06083/81/21869X6X8S
DQ69DOTS08041/21/41869X8X4S
DQ69DOTS08061/23/81869X8X6S
DQ69DOTS08081/21/21869X8X8S
DQ69DOTS10065/83/81869X10X6S
DQ69DOTS10085/81/21869X10X8S
DQ69DOTS10125/83/41869X10X12S
DQ69DOTS12083/41/21869X12X8S
DQ69DOTS12123/43/41869X12X12S

90 Degree Swivel Male Elbow Imperial

Nylon Tube Sizes:

Navigation

categories

about

Part	Tube	NPTF Thread	X-Ref
DQ69DOTS5/3202	5/32	1/8	1869X2.5X2S
DQ69DOTS0302	3/16	1/8	1869X3X2S
DQ69DOTS0304	3/16	1/4	1869X3X4S
DQ69DOTS0402	1/4	1/8	1869X4X2S
DQ69DOTS0404	1/4	1/4	1869X4X4S
DQ69DOTS0406	1/4	3/8	1869X4X6S
DQ69DOTS0408	1/4	1/2	1869X4X8S
DQ69DOTS0602	3/8	1/8	1869X6X2S
DQ69DOTS0604	3/8	1/4	1869X6X4S
DQ69DOTS0606	3/8	3/8	1869X6X6S
DQ69DOTS0608	3/8	1/2	1869X6X8S
DQ69DOTS0804	1/2	1/4	1869X8X4S
DQ69DOTS0806	1/2	3/8	1869X8X6S
DQ69DOTS0808	1/2	1/2	1869X8X8S
DQ69DOTS1006	5/8	3/8	1869X10X6S
DQ69DOTS1008	5/8	1/2	1869X10X8S
DQ69DOTS1012	5/8	3/4	1869X10X12S
DQ69DOTS1208	3/4	1/2	1869X12X8S
DQ69DOTS1212	3/4	3/4	1869X12X12S
