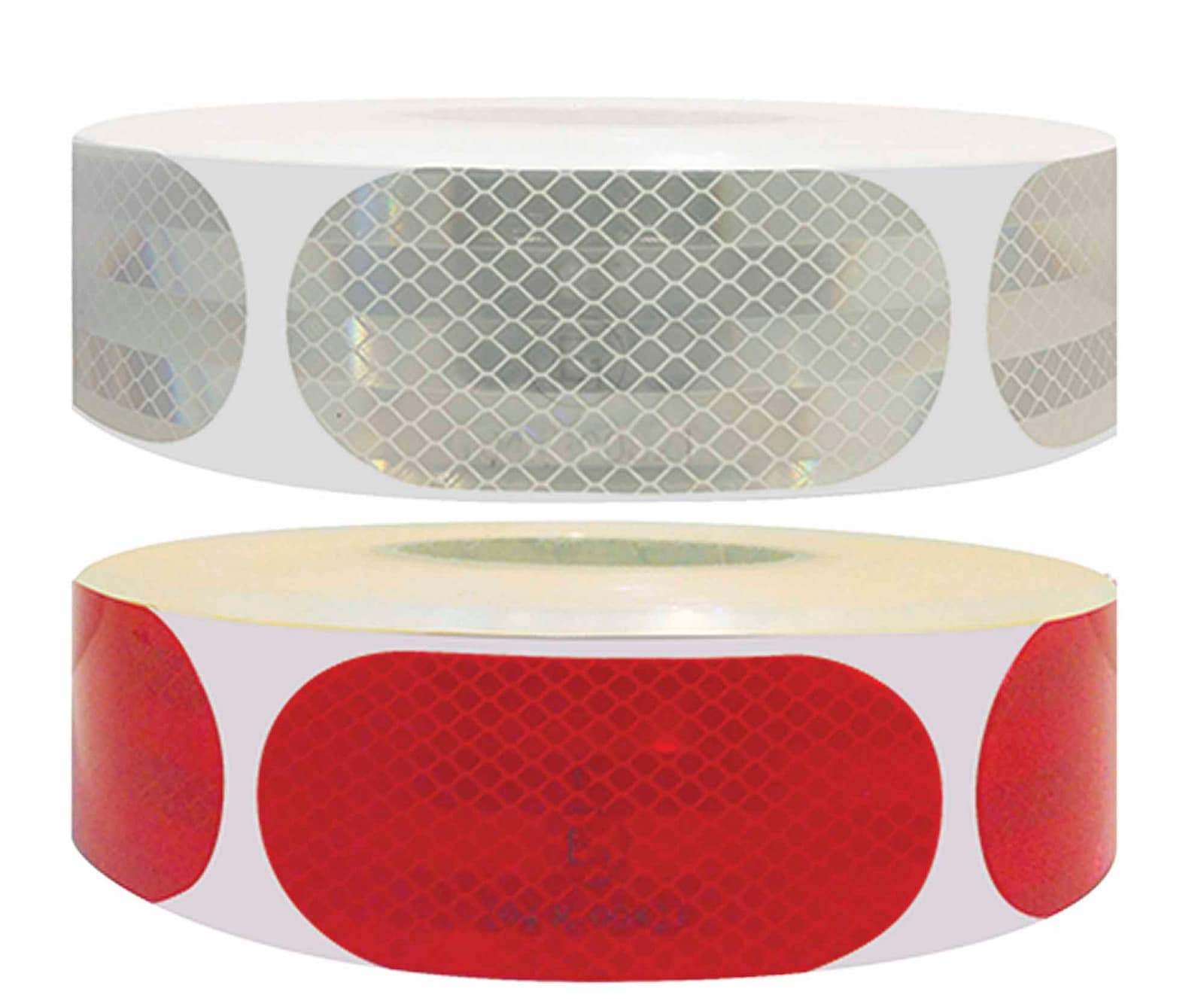

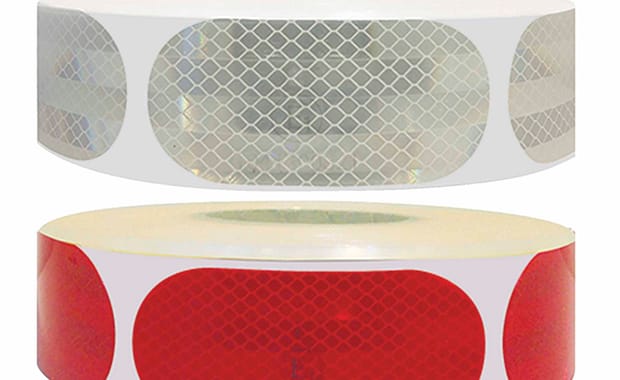

3M™ Rigid Surfaces Segmented Oval Tape

Class 1 – Series 983 Conspicuity Tape Segmented Oval Shape for Rigid Surfaces is made with highly reflective microprismatic markings that offer wide angled, high brightness reflection. Designed to mark the sides and rears of Trucks and Trailers for enhanced visibility and detection. Oval shape is used to make curved lines eg. on the rear oval shape of a fuel tanker. Available in 50Mt and 12.5Mt Rolls.

Conforms to ADR13/00, FMVSS 108 requirements, including DOT-C2 Certification Mark

Available Options:


3M™ Flexible Surfaces Segmented Oval Conspicuity Tape – Series 983

  • Easy to apply
  • High Brightness
  • Oval shaped to follow contoured surfaces – eg rear of fuel tank trailers
  • Wide angularity to almost 90° from perpendicular
  • Conforms to ADR38/05, FMVSS 108 requirements, including DOT-C2 Certification Mark
  • Strong adhesive provides a permanent bond to a variety of surfaces
  • Available in 50Mt & 12.5Mt Rolls


  • Routine washing is recommended for maximum performance
  • Wash with sponge, cloth or soft brush using water and detergent
  • Suitable for automatic truck/car wash or standard high pressure hand spray
  • Maximum pressure 1200 PSI / 80 bar
  • Maximum water/wash solution temperature 60°C.
  • Minimum of 12 inches / 30 cm distance of cleaning jets from Conspicuity Tape
