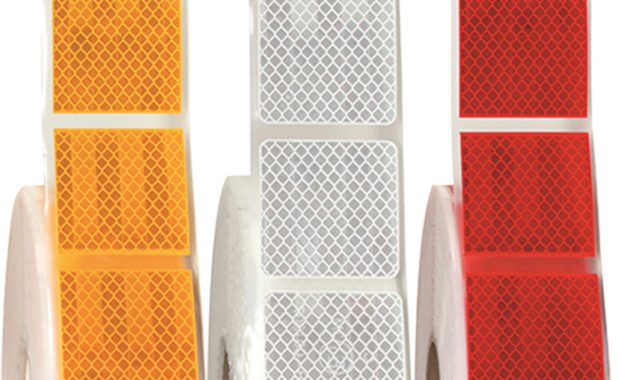

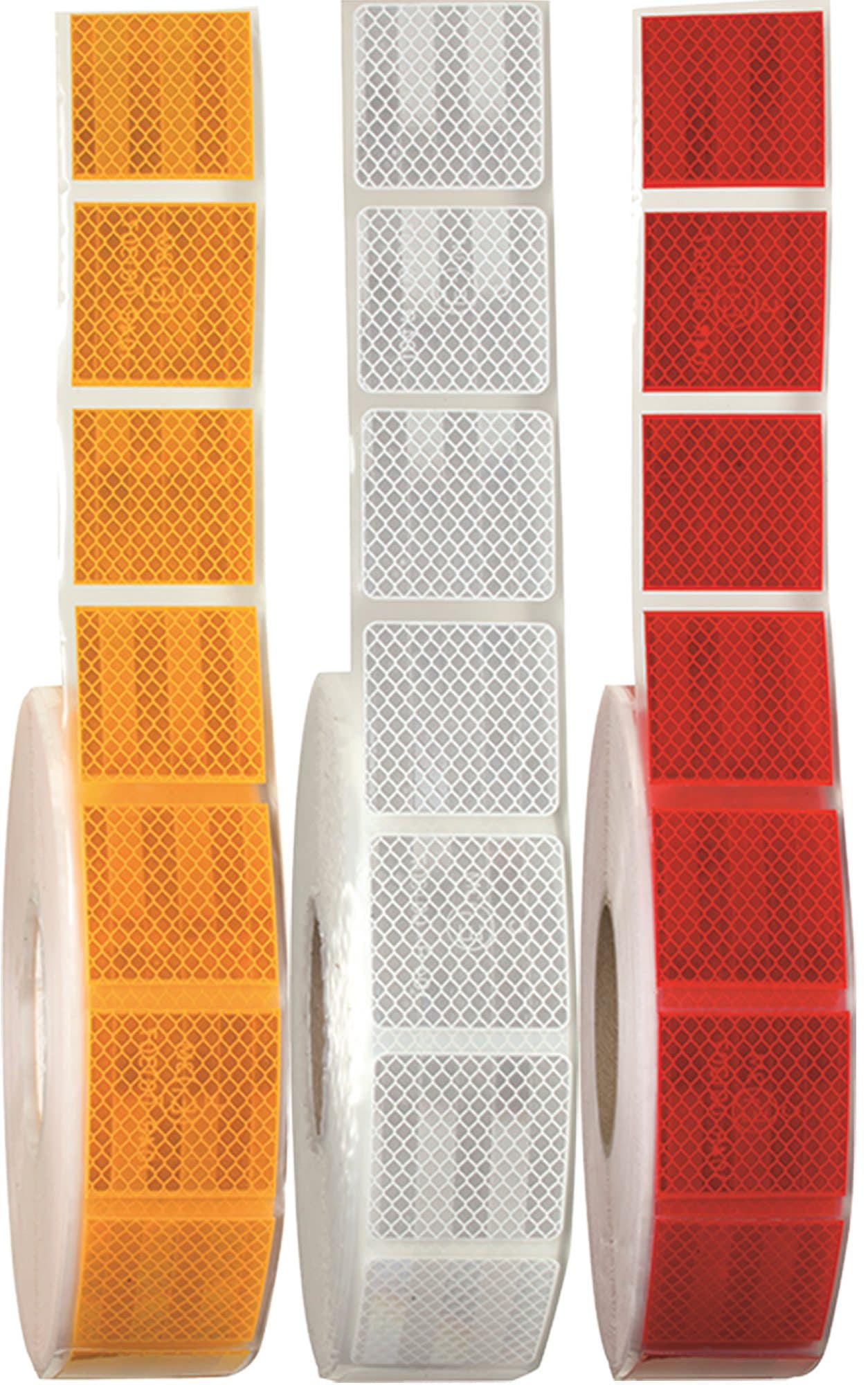

3M™ Curtain Surfaces Segmented Tape

Class 1 – Series 997 Flexible Curtain Surfaces Segmented Squares Series is suitable for rigid, round, and contoured surfaces. Suitable for use on aluminium, steel, stainless steel, automotive paint, truck canvas/curtain sides, made with highly reflective microprismatic markings that offer wide angled, high brightness reflection. Designed to mark the sides and rears of Trucks and Trailers for enhanced visibility and detection. Comes with water tight pre-sealed edges to resist delamination for increased product life. Choose from red, white or yellow flexible conspicuity tape in 50Mt or 12.5Mt Rolls.

Conforms to ADR13/00

Available Options:


3M™ Curtain Surfaces Segmented Tape – Series 997

3M™ Curtain Surfaces Segmented Tape – Series 997

  • Easy to apply
  • High Brightness
  • Edge Sealed to protect against water ingression
  • Wide angularity reflection to almost 90° from perpendicular
  • Conforms to ADR13/00
  • Strong adhesive provides a permanent bond to a variety of surfaces
  • Application to flexible surfaces
  • 50Mt 0r 12.5Mt Rolls


  • Routine washing is recommended for maximum performance
  • Wash with sponge, cloth or soft brush using water and detergent
  • Suitable for automatic truck/car wash or standard high pressure hand spray
  • Maximum pressure 1200 PSI / 80 bar
  • Maximum water/wash solution temperature 60°C.
  • Minimum of 12 inches / 30 cm distance of cleaning jets from Conspicuity Tape
