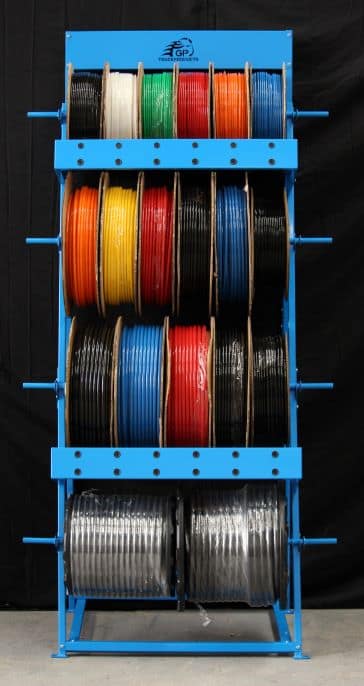

#GP-TS - GP Truck Products Tube Stand
#GP-TS - GP Truck Products Tube Stand

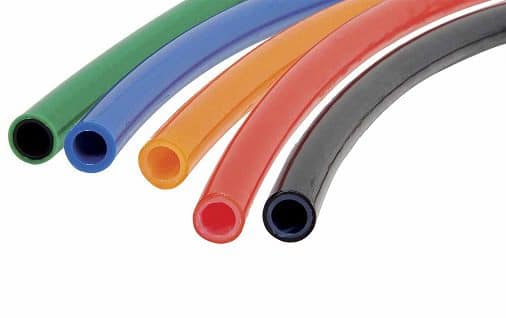

Air Brake Tube Metric

  • GP Truck Products supplies DOT Metric Nylon Air Brake Tube, designed and manufactured for Truck and Trailer Air Brake applications.
  • Conforms to Australian Design Rules ADR-38/05 and performance conformity to ISO7628, DIN 74323 and DIN 74324. All tubing is extruded using the latest machinery and measurement devices.
  • PA12 Heat and UV stabilized materials. Metric DOT Air Brake Tube is a single wall construction.
  • Available in a range of sizes and colours.

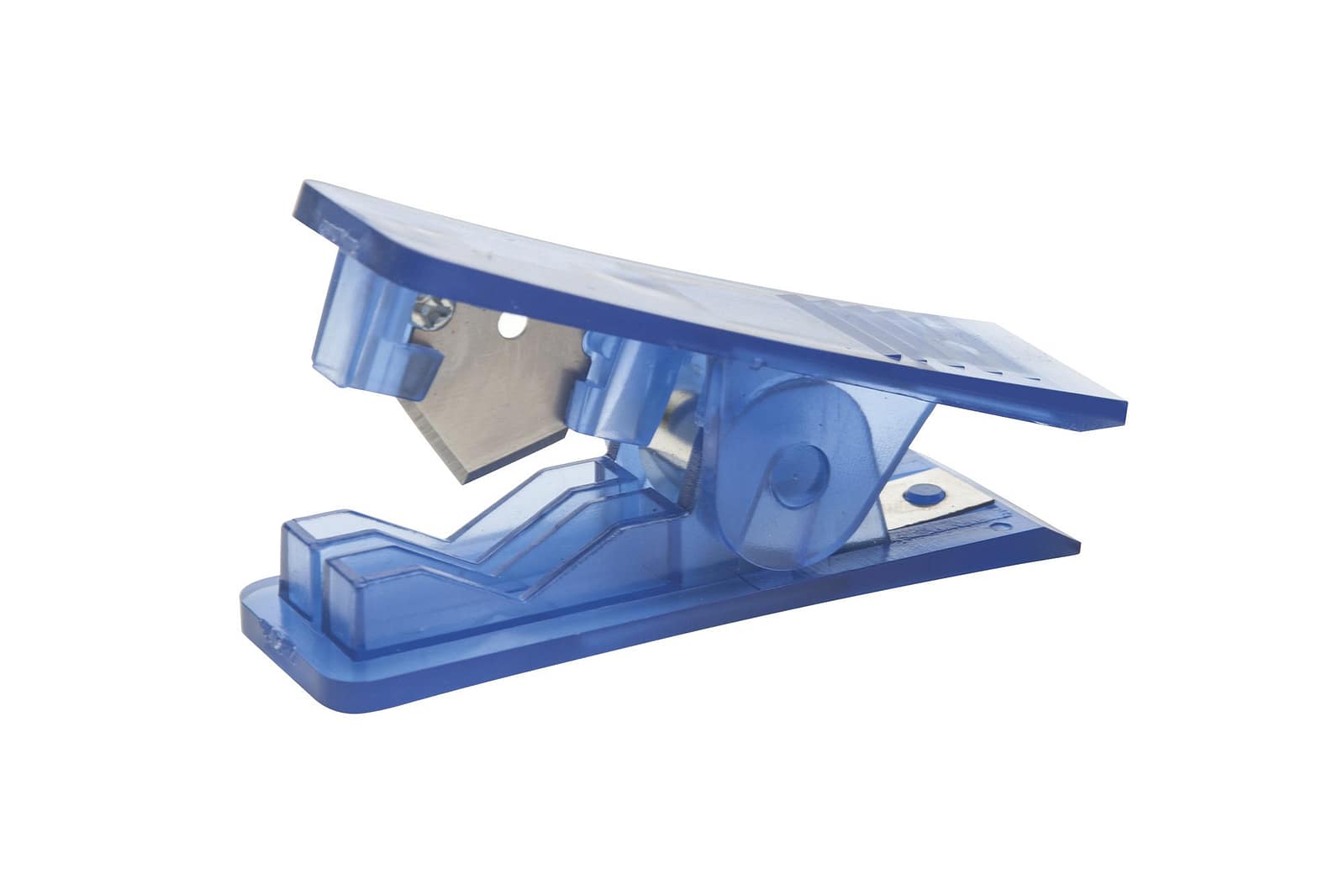

  • Check out our GP-TS (Tube Stand), GP-TSNIP (Tube Cutter) and GP-HDCUT (Heavy Duty Tube Cutter).

DOT Air Brake Tube Sizes

4mm, 6mm, 8mm, 9mm, 10mm, 12mm, 14mm, 15mm, 16mm.

Tube Identification

  • Breakdown of typical part number.
  • GP - (OD) - (ID) - (COLOUR) - (REEL SIZE/METRE)
  • GP-6-4-BK-100
BK BLACK
BL BLUE
RD RED
PartOD TubeColourReel Size (Metres)
GP-4-2-BK-*4mm x 2mmBlack25/50/100
GP-6-4-*-*6mm x 4mmBlack / Blue / Red25/50/100
GP-8-6-*-*8mm x 6mmBlack / Blue / Red25/50/100
GP-10-7.5-*-*10mm x 7.5mmBlack / Blue / Red25/50/100
GP-12-9-*-*12mm x 9mmBlack / Blue / Red25/50/100
GP-14-10-BK-*14mm x 10mmBlack25/50/100
GP-15-12-BK-*15mm x 12 mmBlack25/50/100
GP-16-12-BK-*16 mm x 12 mmBlack25/50/100
