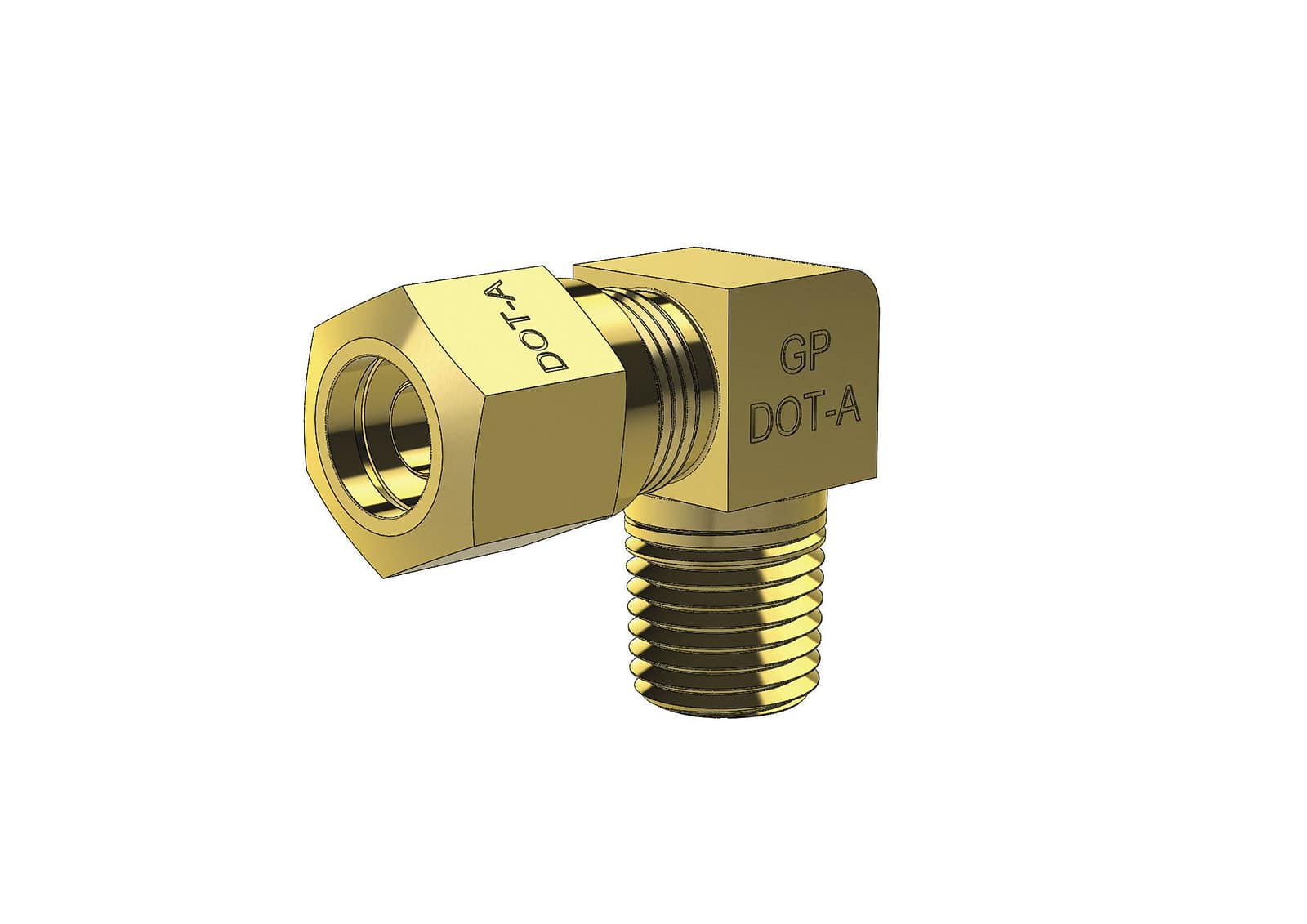

90 Degree Male Elbow

Part Number: GP69CDOT**
  • DOT Compression Air Brake Fitting. Male Elbow (90 Degree) - Imperial tube compression to NPTF male pipe thread.
  • DOT Air Brake Fitting, with Insert, Olive & Nut for Compact, Strong, Reliable Air Brake System DOT Fitting.
  • For use in Air Brake Systems on Trucks, Trailers and Buses.
  • Meets D. O. T. FMVSS 571. 106, SAE J246 and SAE J1131 & Australia Design Rules ADR-38/05.

Nylon Tube Sizes:

1/4″, 3/8″, 1/2″, 5/8"

PartTubeNPTF ThreadX-Ref
GP69CDOT04021/41/81469X4
GP69CDOT04041/41/41469X4X4
GP69CDOT04061/43/81469X4X6
GP69CDOT06023/81/81469X6
GP69CDOT06043/81/41469X6X4
GP69CDOT06063/83/81469X6X6
GP69CDOT06083/81/21469X6X8
GP69CDOT08041/21/41469X8X4
GP69CDOT08061/23/81469X8X6
GP69CDOT08081/21/21469X8X8
GP69CDOT10065/83/81469X10X6
GP69CDOT10085/81/21469X10X8
